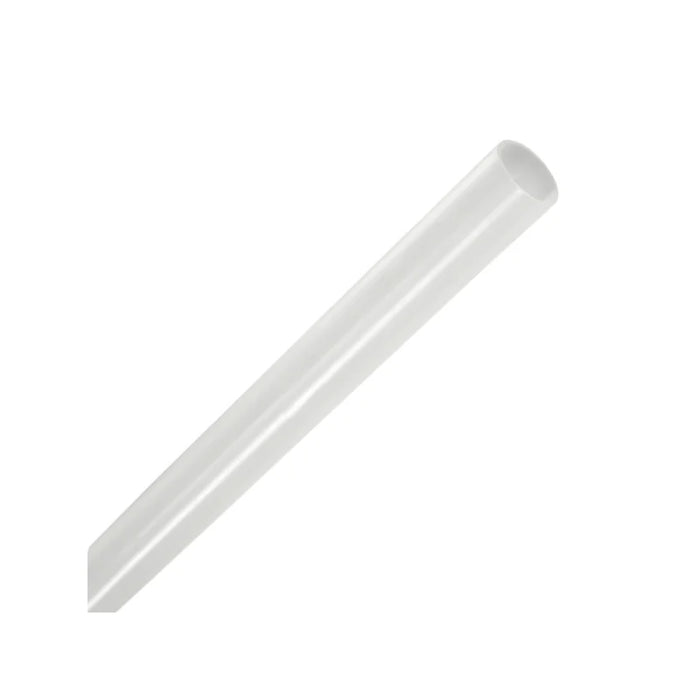

Heat Shrink Tubing - 1/8" ID - 2:1 - Single Wall - PTFE Teflon - Clear

Product Features:

• Sold in 4’ sticks for convenient use
• Material: High-purity Teflon PTFE construction

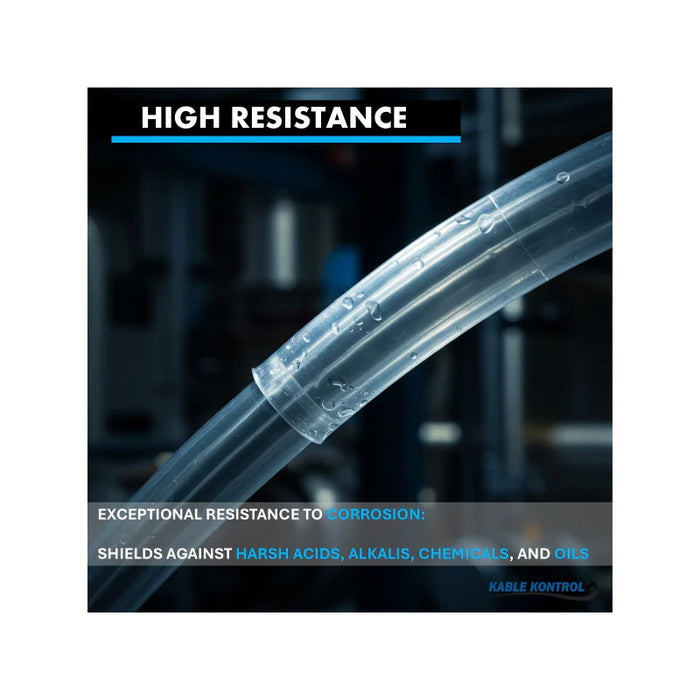

• Corrosion Resistance: Protects against acids, alkalis, oils, and harsh chemicals
• High Dielectric Strength: Provides superior electrical insulation for high-voltage applications
• Shrink Activation Temperature: >350°C
• Color: Transparent (clear) for easy inspection of wires and components
• Durability: Maintains performance under extreme heat and harsh conditions
• Chemical Resilience: Outperforms standard tubing in aggressive environments
• Reliable Insulation: Ensures long-term safety and efficiency
• Mechanical Strength: Withstands wear and tear in demanding settings
• Versatile Applications: Ideal for aerospace, automotive, and chemical processing
• Electrical Use: Excellent for transformers and communication systems
• Industrial-Grade Protection: Designed for critical, high-performance environments
• Long-Term Reliability: Engineered to perform where other materials fail

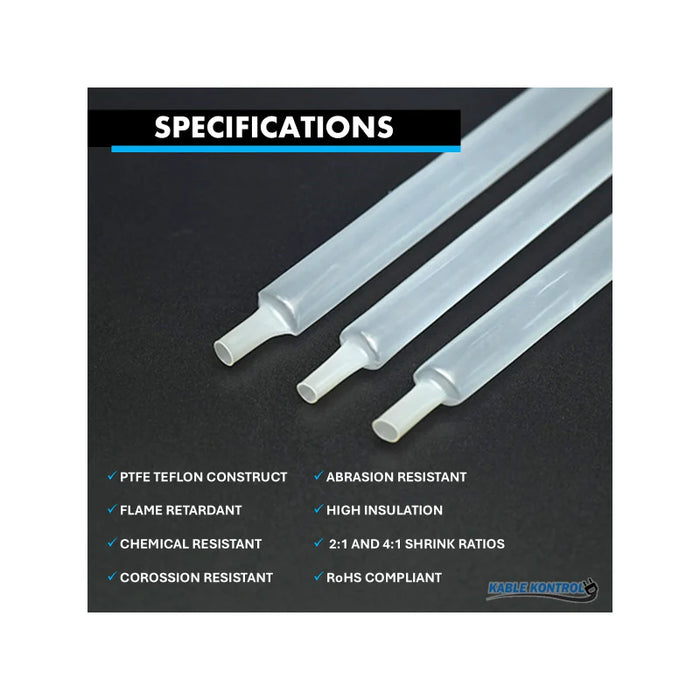

Technical Specifications Data:

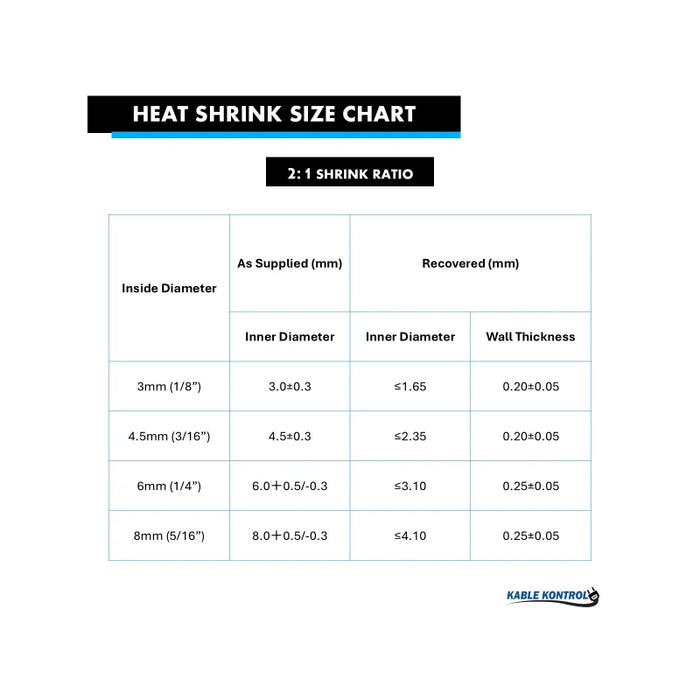

• Inner Diameter (As Supplied) - 3.0±0.3 mm

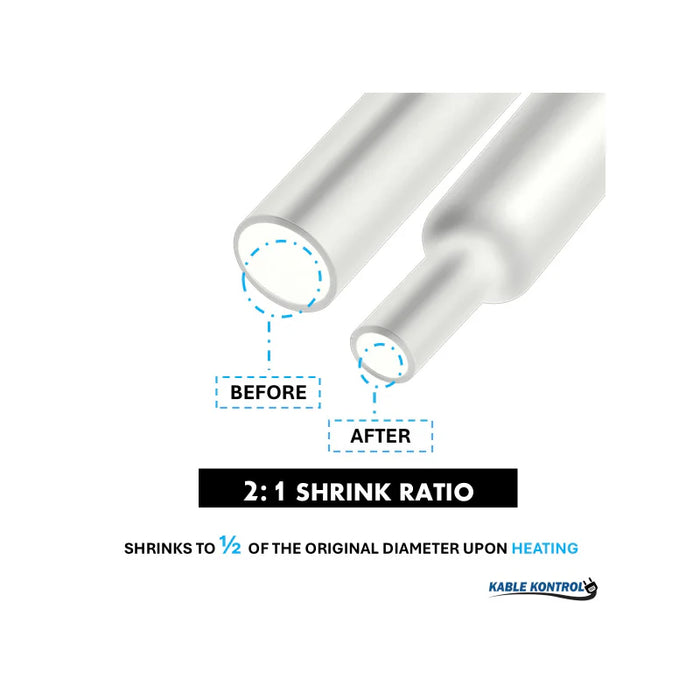

• Inner Diameter (Recovered) - ≤1.65 mm
• Wall Thickness (Recovered) - 0.25±0.05 mm
• Shrink Temperature: >350°C
• Operating Temperature Range: -65°C to +200°C
• Tensile Strength(MPa) - ASTM D2671 (Test Method), (Standard - 19)
• Elongation(%) - ASTM D2671 (Test Method), (Standard - 200)
• Cold impact (-65°C) - ASTMD 2671 Method C (Test Method), (Standard - No Cracking)
• Flammability - ASTM D2671 (Test Method), (Standard - VW-1)
• Dielectric strength(kV/mm) - VDE 0303 Part2 (Test Method), (Standard - 26)
• Volume resistivity(Ω.cm) - VDE 0303 Part2 (Test Method), (Standard -1.0X10¹⁴)
