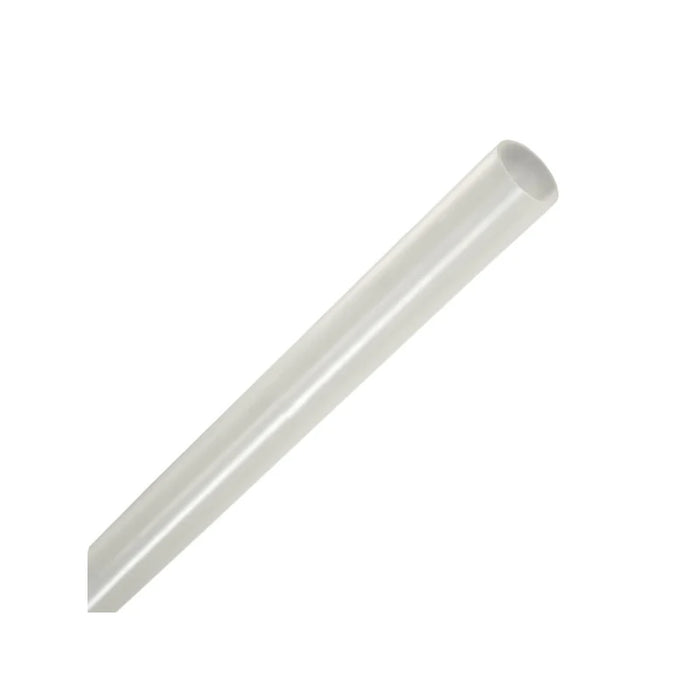

Heat Shrink Tubing - 1/2" ID - 2:1 - Single Wall PVDF - Flame Retardant - clear

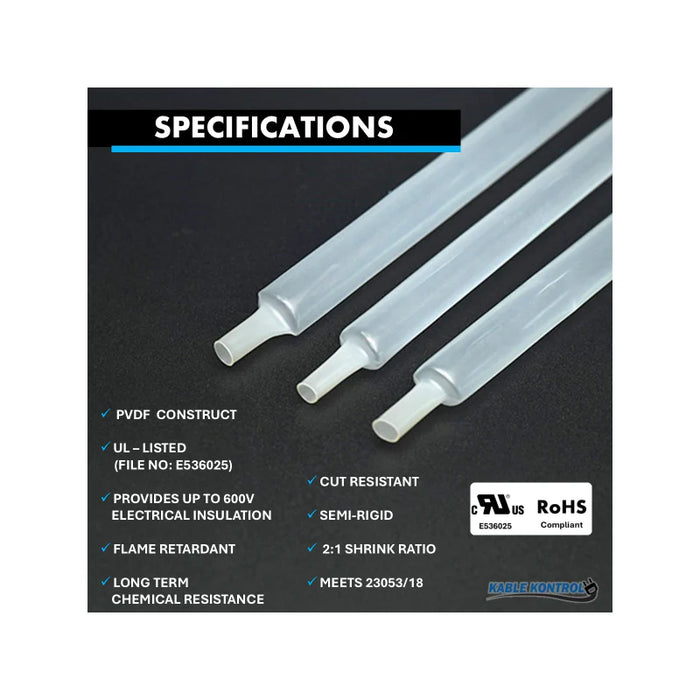

Product Features:

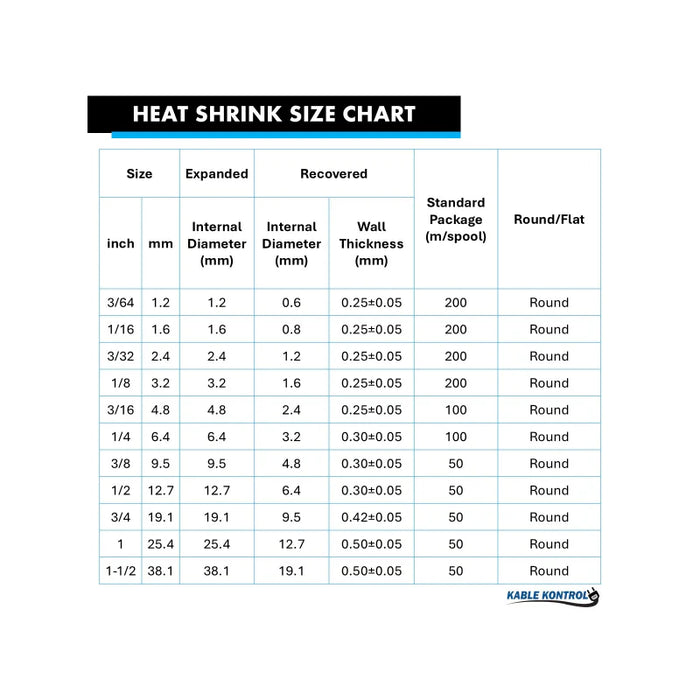

• Size Range: Available from 1/16” to 3/4” inside diameters

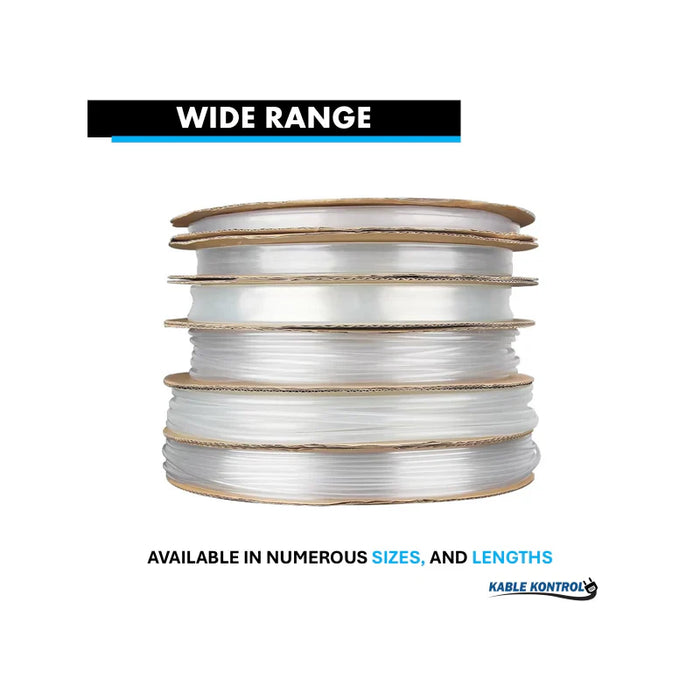

• Length Options: Sold in 4’ sticks or full spool lengths
• Certified Quality: RoHS compliant & UL Listed (UL File No. E536025)
• Durable Performance: Semi-rigid tubing resists diesel, hydraulic fluids, and harsh chemicals
• Safety Protection: Flame retardant and abrasion resistant
• High-Strength Material: Made from transparent PVDF for chemical resistance and durability
• Electrical Insulation: Rated up to 600V
• Thin-Wall Design: Reduces bulk while ensuring dependable insulation
• Clear Transparency: Enables visual inspection without removing tubing
• Versatile Applications: Perfect for insulation, wire bundling, strain relief, and color coding in electronic, automotive, and military environments

• Flame Retardant & Abrasion Resistant

Technical Specifications Data:

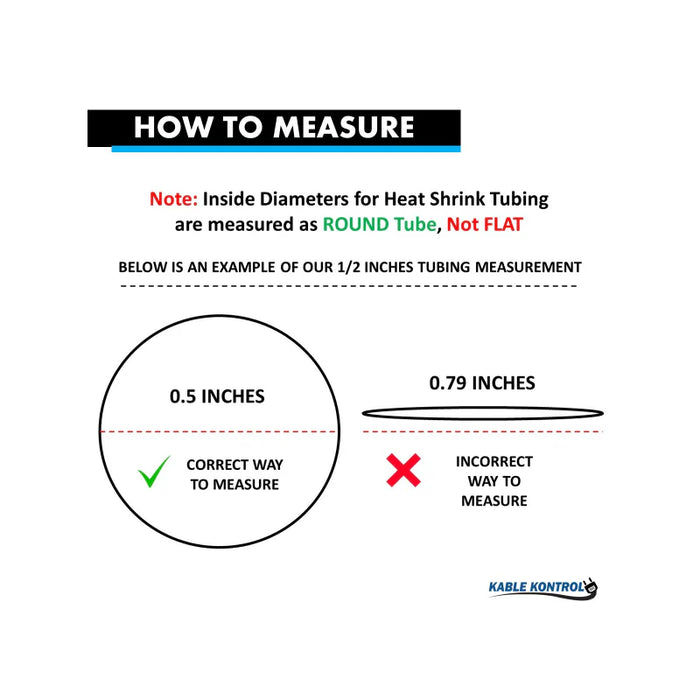

• Inner Diameter (Expanded) - 1/2" (12.7 mm)

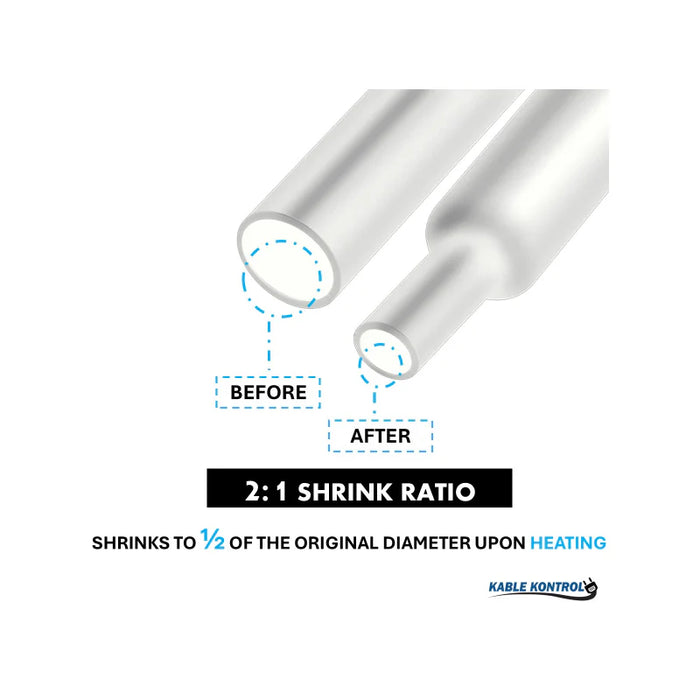

• Inner Diameter (Recovered) - 6.4 mm
• Wall Thickness (Recovered) - 0.30±0.08 mm
• Meets / Complies with standards outlined by mil spec: M23053/18
• Operating Range: Reliable performance from -67°F up to +347°F (-55°C to 175°C)

• Tensile Strength(MPa) - ASTM D 2671 (Test Method), (Standard Performance - ≥30)
• Elongation(%) - ASTM D 2671 (Test Method), (Standard Performance - ≥150)
• Tensile - 250℃X168hr (Test Method), (Standard Performance - ≥100)
• Flammability - ASTM D2671 (Test Standard), (Standard Performance - VW-1)
• Cold Bend - No cracking  (Test Standard), (Standard Performance - ≥220)
• Volume resistivity(Ω.cm) - IEC 60093 (Test Standard), (Standard Performance - ≥10¹⁴)
