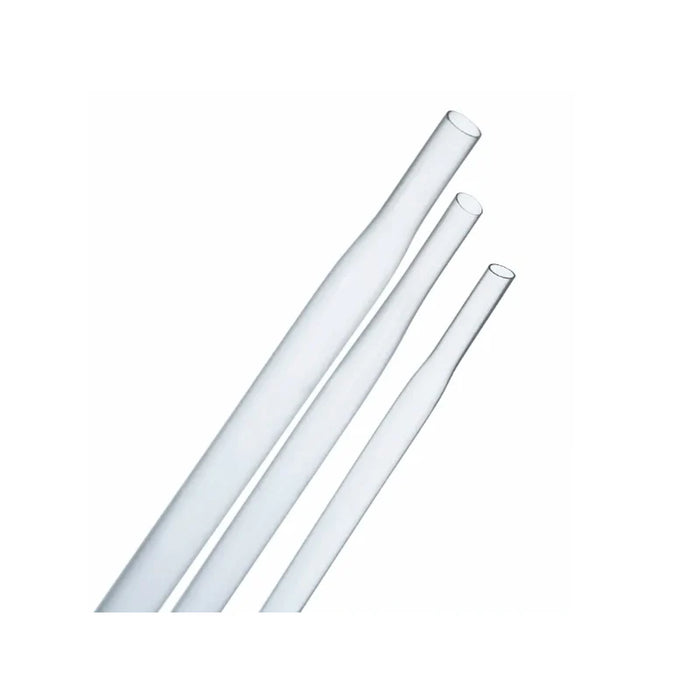

Heat Shrink Tubing - 1" ID - 1.3:1 - FEP - Clear

Product Features:

• Length: Sold in 4’ sticks
• Shrink Ratio: 1.3:1
• Operating Temperature: -65°C to +200°C
• Shrink Activation Range: 200°C to 230°C

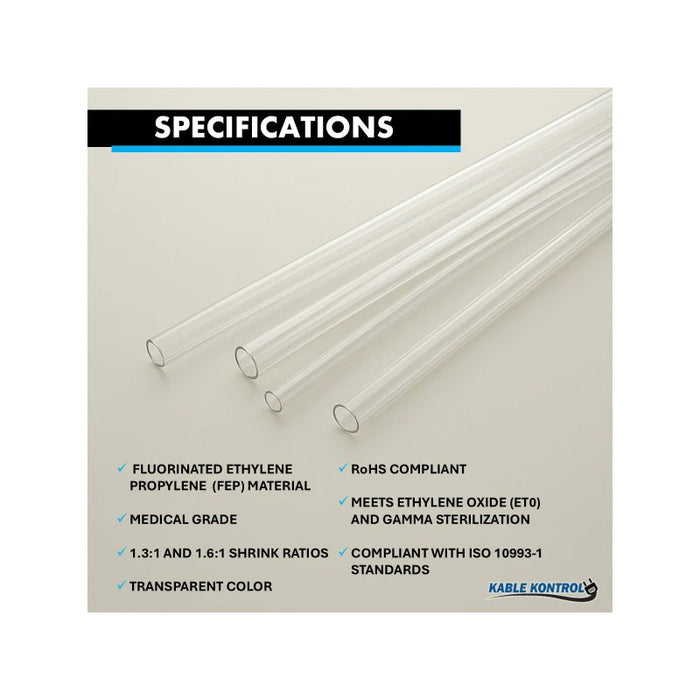

• Material: High-purity FEP (Fluorinated Ethylene Propylene)
• Electrical Insulation: Excellent dielectric strength
• Biocompatibility: Physiologically inert and ISO 10993-1 compliant
• Sterilization: Compatible with EtO and GAMMA methods
• Environmental Compliance: RoHS certified
• Appearance: Transparent with superior clarity and glossy finish
• Performance: Maintains structural integrity under extreme heat without damaging nearby components
• Applications: Ideal for drug delivery systems, catheters, surgical tools, and microcatheters


Technical Specifications Data:

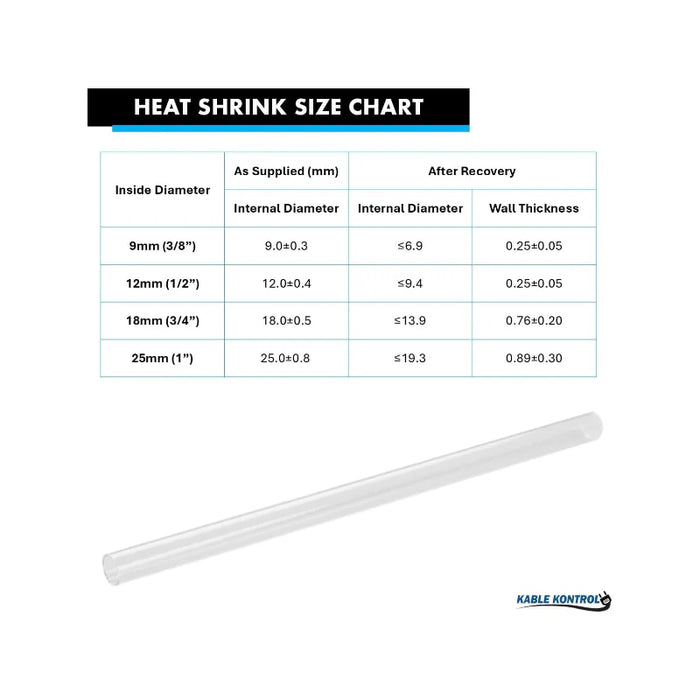

• Inner Diameter (As Supplied) - 25.0±0.8  mm
• Inner Diameter (Recovered) - ≤19.3 mm
• Wall Thickness (Recovered) - 0.89±0.30 mm
• Shrink Temperature: Activates between 200°C and 230°C
• Operating Range: Reliable performance from -65°C up to +200°C

• Tensile Strength(MPa) - ASTM D2671 (Test Standard), (Standard Performance- ≥20)
• Insulation withstand voltage - ASTM D 149 (Test Standard), (Standard Performance - 4000V, 60s, no breakdown)
• Low temperature flexibility - AMS-DTL-23053 ((Test Standard), (Standard Performance : -65°C, 4h, no cracking)
• Flammability - ASTM D2671 (Test Standard), (Standard Performance - VW-1)
• Dielectric strength(kV/mm) - IEC 243 (Test Standard), (Standard Performance - ≥14)
