Heat Shrink Tubing - 1/4" ID - 1.6:1 - FEP - Clear

Original price $25.51 - Original price $25.51
Original price
$25.51
$25.51 - $25.51
Current price $25.51
SKU FEP-161-025-CL-4
MFTR PART# HS16-FEP-025-4-CL
Length: 4' Feet

Ships Same Day! (Cut-Off 2:30 pm EST)

Automatic Free Shipping On Orders $49+

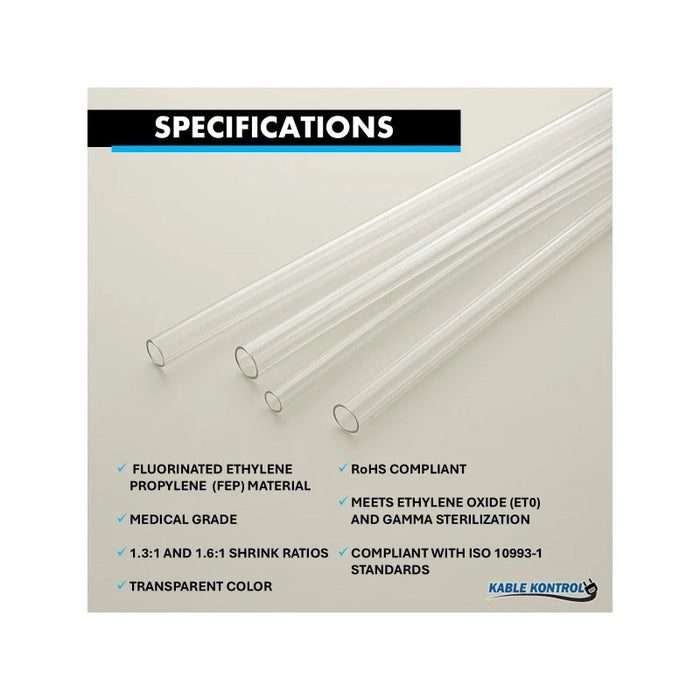

Product Features:

  • Available in convenient 4’ stick form
  • Shrink Ratio: 1.6:1
  • Made from premium FEP (Fluorinated Ethylene Propylene) material
  • Appearance: Clear, glossy finish for maximum visibility
  • RoHS Certified for compliance with environmental standards
  • Provides outstanding electrical insulation capabilities
  • Safe for medical applications – biocompatible and physiologically inert
  • Compliant with ISO 10993-1 standards
  • Compatible with both EtO and GAMMA sterilization methods
  • Retains integrity under high-temperature conditions without damaging nearby parts
  • Engineered for use in catheters, microcatheters, drug delivery systems, surgical and vascular tools
  • Ensures long-lasting protection and insulation in critical medical environments

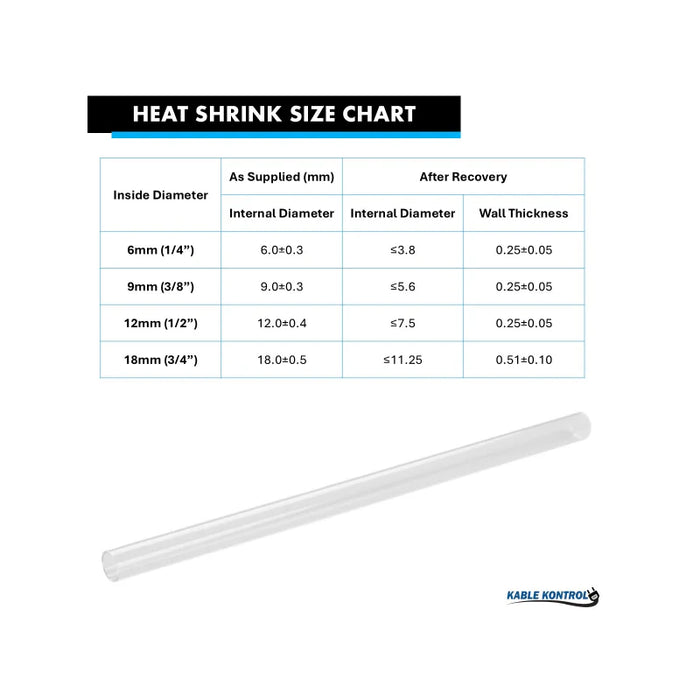

Technical Specifications Data:

  • Inner Diameter (As Supplied) - 6.0±0.3 mm
  • Inner Diameter (Recovered) - ≤3.8 mm
  • Wall Thickness (Recovered) - 0.25±0.05 mm
  • Shrink Temperature: Activates between 200°C and 230°C
  • Operating Range: Reliable performance from -65°C up to +200°C
  • Tensile Strength(MPa) - ASTM D2671 (Test Standard), (Standard Performance- ≥20)
  • Insulation withstand voltage - ASTM D 149 (Test Standard), (Standard Performance - 4000V, 60s, no breakdown)
  • Low temperature flexibility - AMS-DTL-23053 ((Test Standard), (Standard Performance - -65°C, 4h, no cracking)
  • Flammability - ASTM D2671 (Test Standard), (Standard Performance - VW-1)
  • Dielectric strength(kV/mm) - IEC 243 (Test Standard), (Standard Performance - ≥14)
