Heat Shrink Tubing - 1/2" ID - 1.6:1 - FEP - Clear

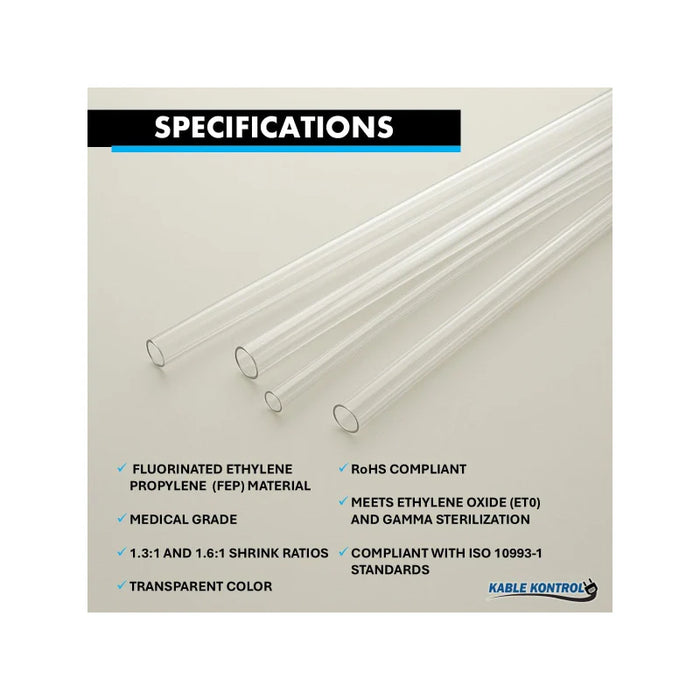

Product Features:

• Available in convenient 4’ stick form
• Shrink Ratio: 1.6:1
• Made from premium FEP (Fluorinated Ethylene Propylene) material
• Appearance: Clear, glossy finish for maximum visibility
• RoHS Certified for compliance with environmental standards
• Provides outstanding electrical insulation capabilities
• Safe for medical applications – biocompatible and physiologically inert
• Compliant with ISO 10993-1 standards

• Compatible with both EtO and GAMMA sterilization methods
• Retains integrity under high-temperature conditions without damaging nearby parts
• Engineered for use in catheters, microcatheters, drug delivery systems, surgical and vascular tools
• Ensures long-lasting protection and insulation in critical medical environments

Technical Specifications Data:

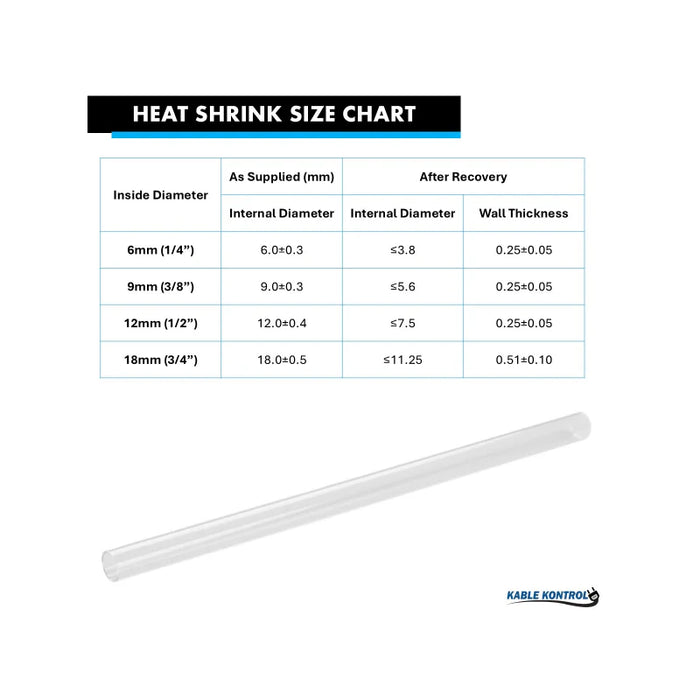

• Inner Diameter (As Supplied) - 12.0±0.4 mm
• Inner Diameter (Recovered) - ≤7.5 mm
• Wall Thickness (Recovered) - 0.25±0.05 mm
• Shrink Temperature: Activates between 200°C and 230°C
• Operating Range: Reliable performance from -65°C up to +200°C

• Tensile Strength(MPa) - ASTM D2671 (Test Standard), (Standard Performance- ≥20)
• Insulation withstand voltage - ASTM D 149 (Test Standard), (Standard Performance - 4000V, 60s, no breakdown)
• Low temperature flexibility - AMS-DTL-23053 ((Test Standard), (Standard Performance - -65°C, 4h, no cracking)
• Flammability - ASTM D2671 (Test Standard), (Standard Performance - VW-1)
• Dielectric strength(kV/mm) - IEC 243 (Test Standard), (Standard Performance - ≥14)
